DBX1000 Plastic Dryer Vent Wall Box With Trim Ring
DBX1000 Plastic Dryer Vent Wall Box With Trim Ring - Image 2

DBX1000 Plastic Dryer Vent Wall Box With Trim Ring

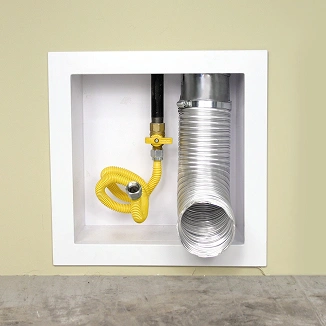

The DBX1000 Plastic Dryer Wall Box with snap-on trim ring. Made of High Impact Polystyrene. The DBX1000 dryer vent enclosures come in one size  6″ size. (For a 2×6 wall). This dryer vent enclosure can also be used to down the vent, just turn the box upside down and you’re done. The DBX1000 dryer vent trim ring helps eliminate repairs and saves you time. The DBX1000 dryer vent box can be installed in single family homes & buildings 3 stories or smaller. It is not allowed on a firewall.
Contact Us To Order

Part Numbers:
DBX1000- 6 (for 2×6 Framing)
DBX-5.01  (dryer vent box, Trim Ring and straps)
DBX-4.001 (dryer vent box and straps)
DBX-2.001 (Plastic trim ring for 6’’ box)

Packaging:
The DBX1000’s are packaged 10 dryer vent boxes per carton.
The dryer vent trim rings are packaged in a separate carton, 10 trim rings per carton

Dimensions:
The DBX1000-6 dryer vent box is 16 ½ tall (w/ flange) and 16 ½ wide (w/ Flange) & 5 ½ deep.
Without flange the box is 14 ½ tall and 14 ½ wide.
Without flange the box is 14 ½ tall and 14 ½ wide.
The trim ring fits the  6’’ size dryer vent box. The trim ring is 17 1/8 tall x 17 1/8 wide.

Benefits:
The DBX1000 plastic dryer vent box with snap-on trim ring with snap on trim ring is made of high impact polystyrene. The trim helps eliminate extra drywall, paint and caulking repairs.
The DBX1000 has three 4’’ pipe knockouts so you get to choose which option is meets your requirement. This dryer vent box also can be rotated in any direction to accommodate your venting needs.
The DBX1000 also has the Length identification label inside it to meet the 2015 IMC building code requirement. IMC 504.8.5.
Other companies charge you separately for the label.
